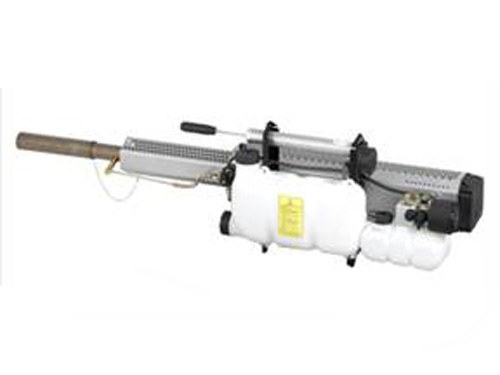

Thermal Fogger

Model No.: PS-36H-1 Model No.: PS-36H-2
Feature: The PS-36H utilizes high-power pulse-jet engine to producing a high output of dense heavy thermal fog control pf virus or flying insects such as mosquitoes, gnats, house flies, sand flies and black flies.
1.
It can be disassembled without extra instrument, it is easy of maintenance.
2. Fogging tube is equipped with two-stages cooling system, this technology will greatly lower the temperature of the fogging tube and combustion chamber.
3. High-work-efficiency, economical, the penetration and clinging of the fog is well.
4. Very light in weight and with compact dimensions, it is easy of operation.
5. Adopting refractory stainless steel to making the fogging tube, it will maintain its natural color and shape in the whole years of its lifespan.
6. Equipped with 4×1.5V battery power supply to assure greater reliability. Effectiveness, and ease of operation.
7. Equipped with automatic ignition system to assure ease of start-up the engine.
8. The adjusting knob of the oil nozzle has scalar, ease of operation.
Optional accessories:
1. Could choose the auto-cut solution valve, In case of the engine flameout, ensure it is safe to the operator.
2. Could choose the automatic ignition system of the air-pump, you only need to push down the start
button, the machine will start-up immediately.
Technical Specification:
|
Weight, empty in kg, approx. |
9.1(PS-36H-2)/ 8.1(PS-36H-1) |
|
Dimensions in mm (L×W×H) |
1375×290×360 |
|
Weight, empty in kg, approx. (shipping data) |
14.1(PS-36H-2)/ 13.1(PS-36H-1) |
|
Dimensions in mm (L×W×H) (shipping data) |
1270×310×370 |
|
Solution tank capacity in L |
5 (PS-36H-2) /7 (PS-36H-1) |
|
Fuel tank capacity in L |
1.5 |
|
Fuel consumption in l/h, approx. |
1.5 |
|
Performance of combustion chamber in KW/HP |
18.5/25.15 |
|
Maximum flow rate in l/h |
42 |
|
Flow rate with oil in l/h, approx. |
8~42 |
|
Energy |
4×1.5 V batteries |
|
Pressure in the solution tank in bar, approx. |
0.25 |
|
Pressure in the oil tank in bar, approx. |
0.06 |
Fields of application:
We designed this machine mainly used for indoors or outdoors. It is capable of dispensing oil based or water based fungicides, germicides, disinfectants, deodorizers, and its compact size and ability to produce large volumes of fog make it ideal for in most situations, such as:
Greenhouse, warehouse, factories, food processing plant, parks, campgrounds, cattle-barns, swine/poultry houses, grain mills, restaurants, hotel complexes, golf courses, and much more. It is also used by Health Ministries throughout the world for controlling mosquitoes that transmit disease like West Nile Virus, Encephalitis, Malaria, Dengue Fever, Yellow Fever and Chagas.
|
