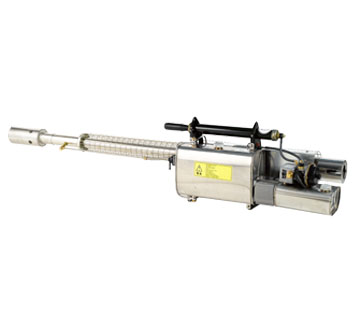

Thermal Fogger

Model No.: PS-35H-1 Model No.: PS-35H-2
Feature:

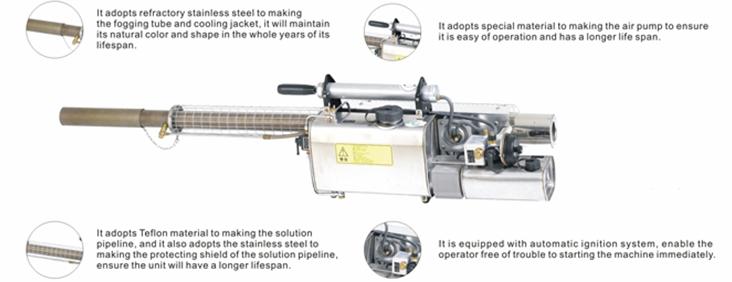

1. We produce this unit in our high quality standard using only high-grade materials, i.e. stainless.
2. Its working performance is very reliable, you could spray at any angle, the engine will not flameout.
3. High-work-efficiency, economical, the penetration and clinging of fog is well.
4. Very light in weight, it is easy of operation and maintenance.
You could choose the different series of PS-35H according to your needs:
PS-35H-2(Top grade type): A model like PS-35H-1 (Standard type), but it has the following character:
Technical Specification:
|
Weight, empty in kg, approx. |
7.9 |
|
Dimensions in mm (L×W×H) |
1440×270×315 |
|
Weight, empty in kg, approx. (shipping data) |
11.6 |
|
Dimensions in mm (L×W×H) (shipping data) |
1288×310×360 |
|
Solution tank capacity in L |
5 |
|
Fuel tank capacity in L |
1.5 |
|
Fuel consumption in l/h, approx. |
1.5 |
|
Performance of combustion chamber in KW/HP |
11.6/15.8 |
|
Maximum flow rate in l/h |
42 |
|
Flow rate with oil in l/h, approx. |
8~42 |
|
Energy |
2×1.5 V batteries |
|
Pressure in the solution tank in bar, approx. |
0.25 |
|
Pressure in the oil tank in bar, approx. |
0.06 |
Field of application:
We designed this machine for mainly used in the urban environment. It dispenses oil based or water based insecticides, fungicides, germicide, disinfectants, odor control and other chemical products as easily, effectively and economically. PS-35H, the portable powerhouse that excels on application problems where other machines fail: for those hard-to-reach areas, indoors or outdoors, and for the little as well as the large jobs such as mosquito control to combat malaria and dengue fever. It has mainly used in the following fields of application:
Warehouses, factories, food processing plants, greenhouses, parks, camp-grounds, cattle barns, swine/poultry house, grain mills, shopping centers, schools, restaurants, apartment complexes, hotels and much more.
|
