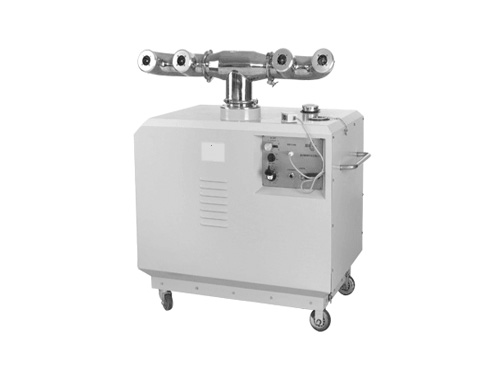

Model No.: PS-V-01
Features：
- Producing nearly invisible droplets, high range of spraying, better penetration, quickly diffusibility.
- It can be fully automatic control for all of its function in the cab.
- Applying for ultra-low-volume spraying, using a little chemical solution, economical.
- High-work-efficiency, labour cost low, treating area is up to 100 acres per hour.
- Mounted on a solid frame with 4 truckles and pulling poles, ease of operation.
- Producing an excellent droplet spectrum. So it produce heavy and dense fog of chemical solution for better penetration and floating in the air for a longer time.
- No chemical flows through the vehicle cab.
- Atomizing by wind power, it could spraying biological pesticides or germicides and maintain its activity.
- All the voltage of the unit is 12V, so it is very safe to the operator.
- Spraying distance is adjustable.
- Could choose outside solution tank with different cubage, which has fast tie-in.
- Could choose diesel or gasoline engine as power. Frame size permits mounting in almost any vehicle.
- Frame size permits mounting in almost any vehicle.
The difference of three types of vehicle-mounted ULV aerosol applicators:
|
Manual Control Type |
Remote Control Type |
Automatic Control Type |
|
You could fulfill all of its function on the control panel.
The main function as stated below:
1. Machine on/off
2. Spray on/off
3. Adjusting the spraying distance.
4. Adjusting the spraying angle both in horizontally and vertically, you could adjust the spraying angle from 0-300 degree in horizontally, and you also could adjust the spraying angle from 0 degree to 90 degree in vertically. |
In cab, you could operate the remote controller, to fulfill all of its function.
1. Machine on/off
2. spray on/ off
3. Adjusting the spraying distance.
4. Adjusting the spraying angle both in horizontally and vertically, you could adjust the spraying angle from 0-300 degree in horizontally, and you also could adjust the spraying angle from 0 degree to 90 degree in vertically.
5. Choose the inner or outer solution tank. |
Having a control box, the control box has an electric cable connected to the unit. In cab, you could operate all the function of the unit on the control box.
1.Machine on/off
2.Spray on/off
3. Adjusting the spraying distance.
4 Adjusting the spraying angle both in horizontally and vertically, you could adjust the spraying angle from 0-300 degree in horizontally, and you also could adjust the spraying angle from 0 degree to 90 degree in vertically.
5. Choose the inner or outer solution tank. |
Fields of Application:
We adopt high power engine to driving the unit, for really large jobs. A special design, in conjunction with highly effective protective measures, ensures dependable application also under the stringent conditions of public hygiene. It is mainly used in following fields of application:
- Prevention and control disease or insect pests of plants in agriculture.
- Prevention and control disease or insect pests of plants in forest
- Prevention and control disease or insect pests of plants in the urban environment.
- Vector control and sanitizing in the urban environment.
Technical Specifications:
|
Engine |
Single cylinder, upright, air cooled, 4stroke diesel engine |
Single cylinder, upright, air cooled, 4stroke gasoline engine |
|
Power(kW/rpm) |
5.7/3000rpm 6.3/3600rpm(accelerator with full throttle down), |
8.8/3600rpm |
|
Start-up-mode |
Electric |
Electric |
|
Oil consumption(g/kWh)] |
3000rpm:275.1/3600rpm:281.5 |
3600rpm:281.5 |
|
Fuel |
0#(summer),－10#(winter) diesel oil |
Gasoline |
|
Fan |
High pressure centrifugal fan |
High pressure centrifugal fan |
|
Blower |
Direct drive, positive displacement rotary type |
Direct drive, positive displacement rotary type |
|
Air volume(LPM) |
＞30000 |
>30000 |
|
Air pressure(Pa) |
＞3500 |
>3500 |
|
Atomizing type |
Swirl air current of highly speed revolving |
Swirl air current of highly speed revolving |
|
Number of Nozzle |
4 |
4 |
|
Particle size(micron) |
30 |
30 |
|
Spraying capacity(L/h) |
50-300 , can be continuously adjustable. |
50-300 , can be continuously adjustable |
|
Capacity of inner solution tank |
50L |
50L |
|
Dimensions (mm) |
654×1200×1165 |
1075×575×845 |
|
Net weight(kg) |
200 |
100 |
Could choose the following solution tank with different capacity and weight.
1 300L
Could choose the following solution tank with different capacity and weight.
1 300L 720×1000mm 7.5kg
2 500L 840×1000mm 10.5kg
3 800L 1200×1000×1000mm 71kg
4 1000L 1200×1000×1160mm 77kg
5 1200L 1200×1000×1350 91kg
|
